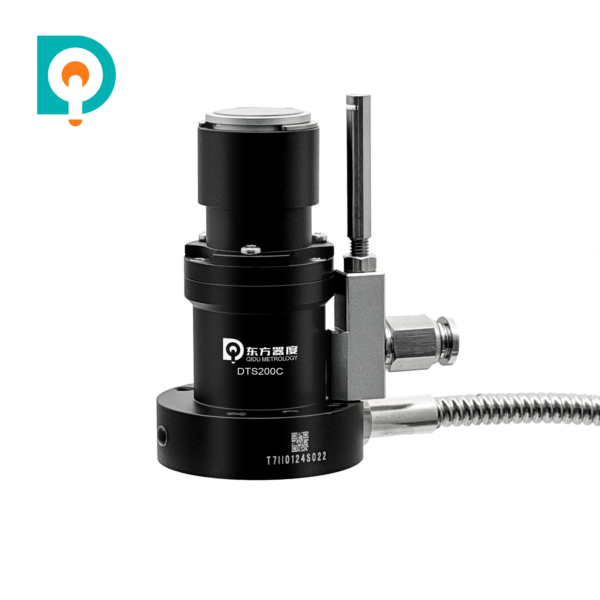

  1. Qidu DTS200C compact Z-axis CNC tool setter with cylindrical housing, 20 mm contact pad, pneumatic fitting and coiled cable with protective metal conduit.

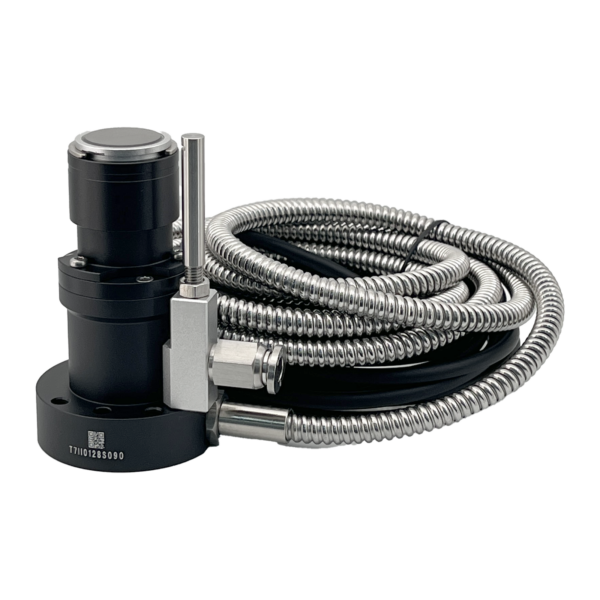

  2. Qidu DTS200C wired contact tool setter featuring a 20 mm tungsten carbide pad, black cylindrical housing, round mounting base and pneumatic air nozzle.

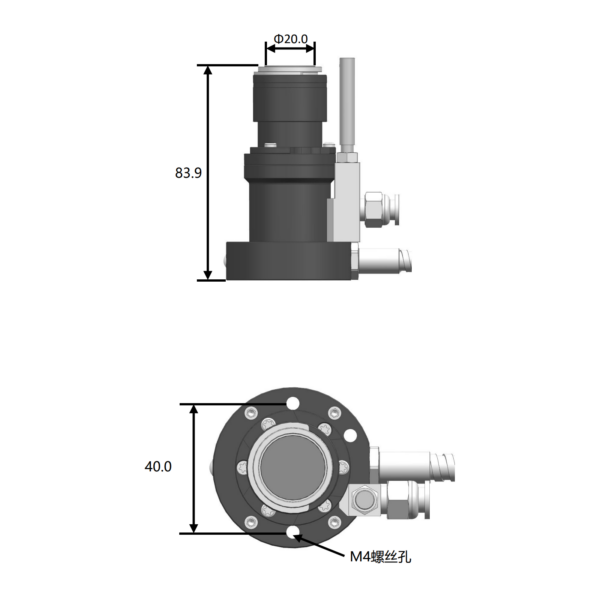

  3. DTS200C technical drawing showing 83.9 mm overall height, 20 mm contact pad diameter, 40 mm mounting hole spacing and M4 mounting holes.
  4. DTS200C specification chart showing 20 mm tungsten carbide pad, below 1 μm repeatability, 8.5 mm axial stroke, normally open output and IP68 protection.

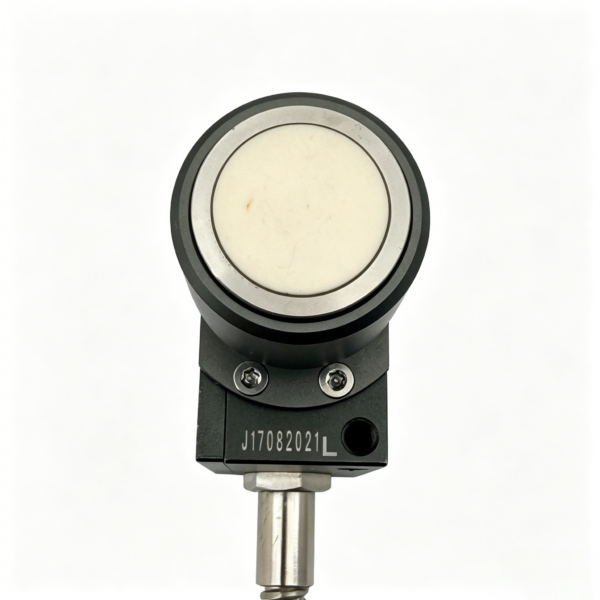

  5. Side view of a DTS500-style wired CNC tool setter with large circular metal contact pad, black housing, mounting bracket and protective conduit.

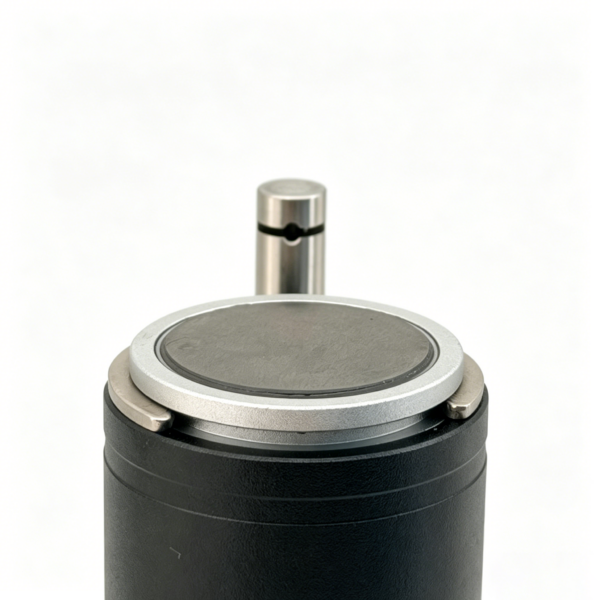

  6. DTS200S Z-Axis Tool Setter Contact Pad Detail

DTS200C Compact Z-Axis CNC Tool Setter for Tool Length

DTS200C compact Z-axis contact tool setter supports automatic tool length measurement and tool checks on CNC machining centers. It features a Ø20 mm tungsten carbide pad, below 1 μm (2σ) repeatability at 50 mm/min, 8.5 mm axial stroke, normally open output and IP68 protection.

التصنيفات: , الوسوم: , ,
شارك

DTS200C is a compact, wired Z-axis CNC tool setter developed for automatic tool length measurement, offset setting and programmed tool checks. Its Ø20 mm tungsten carbide contact pad detects tool contact along the +Z direction, sending a trigger signal through a normally open (NO) output to a compatible CNC controller.

The DTS200C specifies repeatability below 1 μm (2σ) at a probing speed of 50 mm/min. A 0.7 mm pre-stroke, 8.5 mm axial stroke and 5.5 mm trigger protection distance define its published mechanical movement characteristics. The cylindrical housing and round mounting base provide an alternative installation layout to rectangular tool setter designs.

A 5 m oil-resistant, six-core cable and IP68 sealing support use in suitable machining environments. With the required CNC macros, the DTS200C can support tool offset verification and basic tool breakage checks. Qidu provides guidance on mounting, wiring, calibration and controller integration.

Model

DTS200C
Product Type

Z-Axis Contact CNC Tool Setter
Contact Pad Diameter

Ø20 mm
Trigger Direction

+Z
Repeatability

<1 μm (2σ)
Repeatability Test Speed

50 mm/min
Pre-Stroke

0.7 mm
Z-Axis Stroke

8.5 mm
Trigger Protection Distance

5.5 mm
Trigger Force

2.2 N (vertical installation)
Output Configuration

A: Normally Open (NO)
Signal Transmission

Hard-Wired Cable
Mechanical Trigger Life

>10 million cycles
Contact Pad Material

Tungsten Carbide
Cable Length

5 m
Cable Type

Oil-Resistant, 6-Core
Cable Outer Diameter

Ø4.8 mm
Electrical Contact Rating

DC 24 V, ≤20 mA, resistive load
Recommended Contact Current

10 mA
Protective Conduit Length

2 m
LED Status

Normal: OFF; Activated: ON
Protection Rating

IP68
SpecificationDTS200CDTS200DTS100
Contact Pad DiameterØ20 mmØ20 mmØ10 mm
Trigger Direction+Z+Z+Z
Repeatability<1 μm (2σ)<1 μm (2σ)<1 μm (2σ)
Test Speed50 mm/min50 mm/min50 mm/min
Pre-Stroke0.7 mm0.7 mm0.5 mm
Z-Axis Stroke8.5 mm11 mm6 mm
Trigger Protection Distance5.5 mm5.5 mm3.5 mm
Trigger Force2.2 N2.2 N1.8 N
Electrical OutputNONONC
Overall Height Shown83.9 mm110.0 mm43.0 mm
Housing / MountingCylindrical / Round BaseRectangularRectangular
Protection RatingIP68IP68IP68
