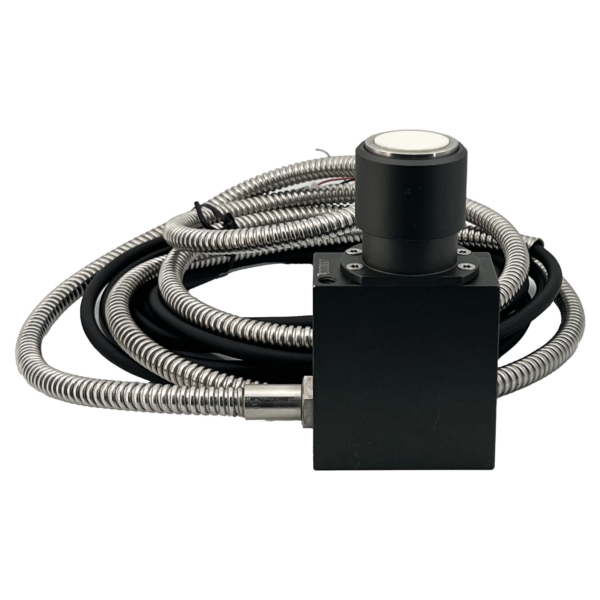

Qidu DTS500 Z-axis CNC contact tool setter featuring a 50 mm tungsten carbide pad, black housing, air nozzle and cable connection.
DTS500 technical specification chart showing 50 mm tungsten carbide pad, below 1 μm repeatability, 11 mm stroke, NO output and IP68 protection.
Side view of a DTS500-style wired CNC tool setter with large circular metal contact pad, black housing, mounting bracket and protective conduit.

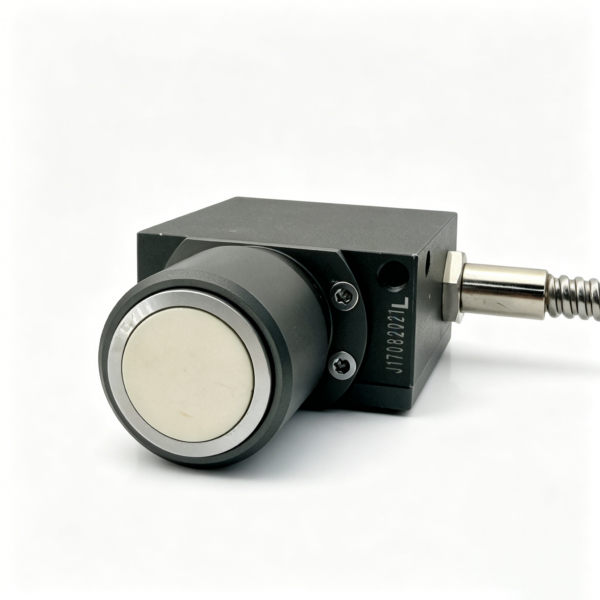

Close-up of a DTS500-style CNC tool setter showing its large circular metal contact pad, black sensing housing and mounting connections.

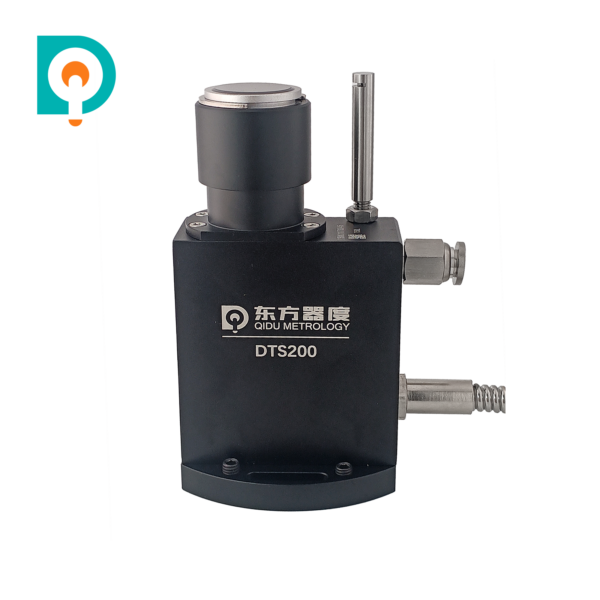

DTS200S Z-Axis Tool Setter Contact Pad Detail
  1. DTS500 technical drawing showing 50 mm contact pad diameter, 114.7 mm overall height, 60 mm body width and M4 slotted mounting features.
  2. Qidu DTS500 Z-axis CNC contact tool setter featuring a 50 mm tungsten carbide pad, black housing, air nozzle and cable connection.
  3. DTS500 technical specification chart showing 50 mm tungsten carbide pad, below 1 μm repeatability, 11 mm stroke, NO output and IP68 protection.
  4. Side view of a DTS500-style wired CNC tool setter with large circular metal contact pad, black housing, mounting bracket and protective conduit.
  5. Close-up of a DTS500-style CNC tool setter showing its large circular metal contact pad, black sensing housing and mounting connections.
  6. DTS200S Z-Axis Tool Setter Contact Pad Detail

DTS500 Z-Axis CNC Tool Setter with 50 mm Contact Pad

DTS500 Z-axis contact CNC tool setter supports automatic tool length measurement and programmed tool checks. It features a Ø50 mm tungsten carbide pad, repeatability below 1 μm (2σ) at 50 mm/min, an 11 mm axial stroke, normally open output and IP68 protection.

التصنيف: الوسوم: , ,
شارك

DTS500 is a wired Z-axis contact tool setter designed for automatic tool length measurement and offset setting on CNC machining centers. Its Ø50 mm tungsten carbide contact pad detects tool contact along the +Z direction, providing a trigger signal to a compatible CNC controller through a normally open (NO) output.

The DTS500 specifies repeatability below 1 μm (2σ) at a probing speed of 50 mm/min. A 0.7 mm pre-stroke, 11 mm axial stroke and 5.5 mm trigger protection distance define the published contact movement characteristics. The unit also features IP68 sealing and a 5 m oil-resistant, six-core cable for wired integration.

Its larger contact pad offers a distinct option within Qidu’s Z-axis tool setter range, although tool compatibility depends on geometry and measurement approach. With appropriate controller inputs and macros, the DTS500 can support tool length verification and basic breakage checks. Qidu provides assistance with mounting, wiring, calibration and machine integration.

Model

DTS500
Product Type

Z-Axis Contact CNC Tool Setter
Contact Pad Diameter

Ø50 mm
Trigger Direction

+Z
Repeatability

<1 μm (2σ)
Repeatability Test Speed

50 mm/min
Pre-Stroke

0.7 mm
Z-Axis Stroke

11 mm
Trigger Protection Distance

5.5 mm
Trigger Force

2.2 N (vertical installation)
Output Configuration

A: Normally Open (NO)
Signal Transmission

Hard-Wired Cable
Mechanical Trigger Life

>10 million cycles
Contact Pad Material

Tungsten Carbide
Cable Length

5 m
Cable Type

Oil-Resistant, 6-Core
Cable Outer Diameter

Ø4.8 mm
Electrical Contact Rating

DC 24 V, ≤20 mA, resistive load
Recommended Contact Current

10 mA
Protective Conduit Length

2 m
LED Status

Normal: OFF; Activated: ON
Protection Rating

IP68

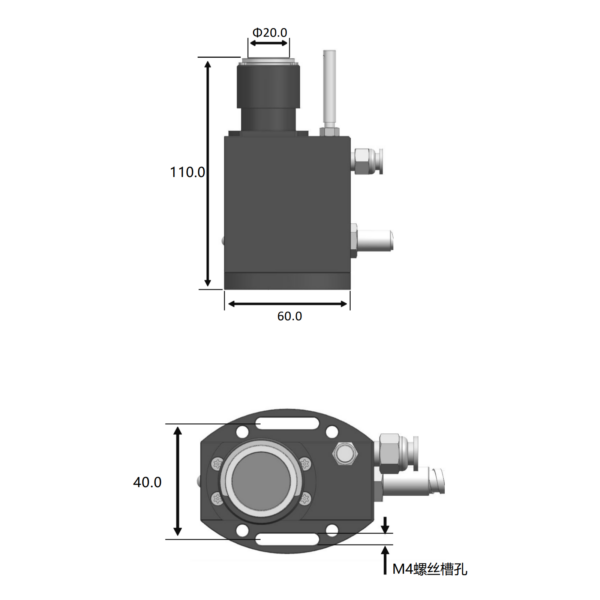

SpecificationDTS200CDTS200DTS100
Contact Pad DiameterØ20 mmØ20 mmØ10 mm
Trigger Direction+Z+Z+Z
Repeatability<1 μm (2σ)<1 μm (2σ)<1 μm (2σ)
Test Speed50 mm/min50 mm/min50 mm/min
Pre-Stroke0.7 mm0.7 mm0.5 mm
Z-Axis Stroke8.5 mm11 mm6 mm
Trigger Protection Distance5.5 mm5.5 mm3.5 mm
Trigger Force2.2 N2.2 N1.8 N
Electrical OutputNONONC
Overall Height Shown83.9 mm110.0 mm43.0 mm
Housing / MountingCylindrical / Round BaseRectangularRectangular
Protection RatingIP68IP68IP68
