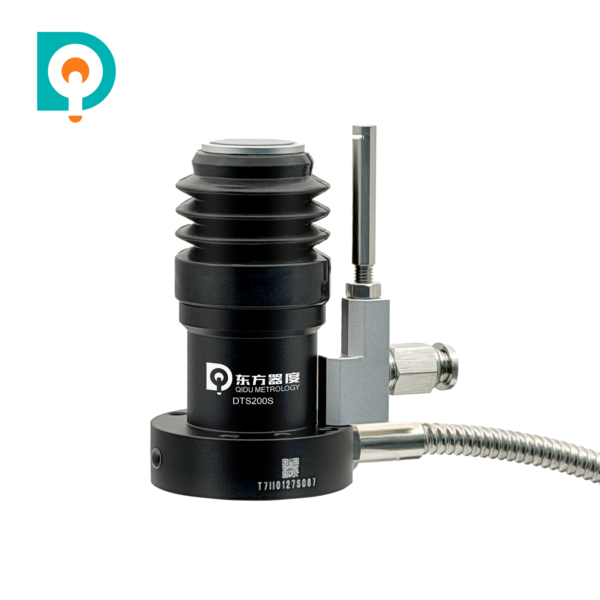

Qidu DTS200S Compact Z-Axis CNC Tool Setter with Bellows Cover

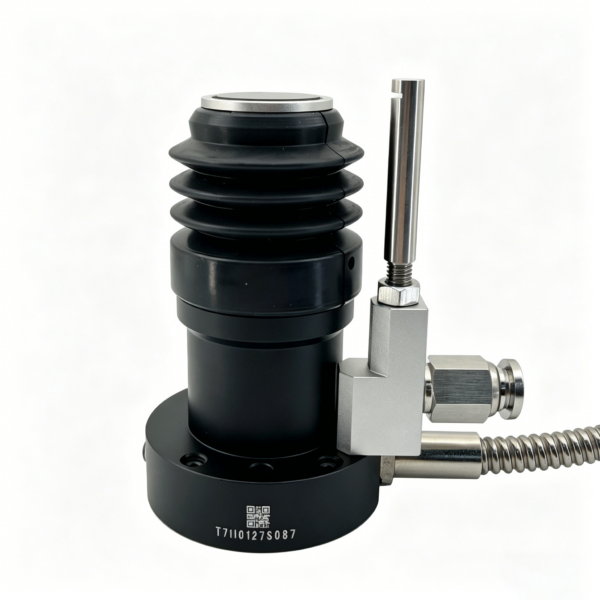

DTS200S CNC Tool Setter Bellows Protective Cover Detail

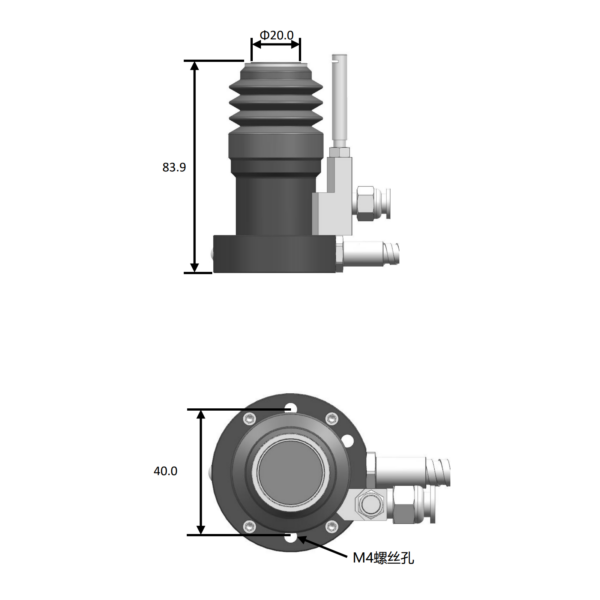

DTS200S CNC Tool Setter Mechanical Dimensions

DTS200S Z-Axis CNC Tool Setter Technical Specifications

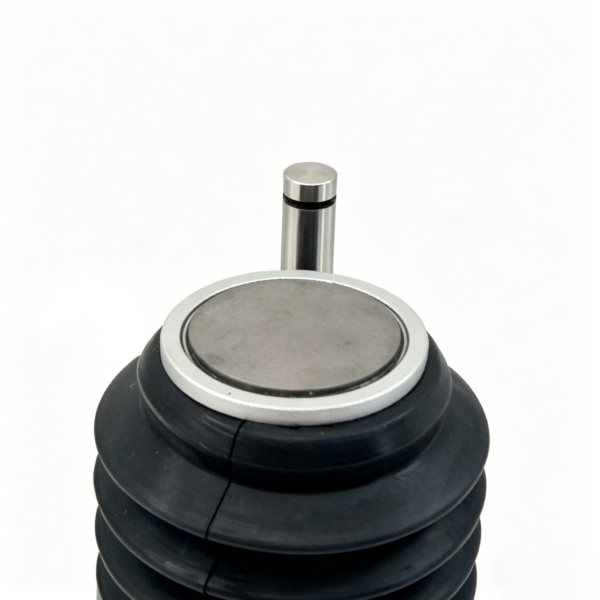

DTS200S Z-Axis Tool Setter Contact Pad Detail

DTS200S Compact Z-Axis CNC Tool Setter with Bellows Cover

DTS200S compact Z-axis contact tool setter features a bellows-style protective cover, Ø20 mm tungsten carbide pad, below 1 μm (2σ) repeatability at 50 mm/min, 8.5 mm axial stroke, normally open output, IP68 protection and a 5 m wired connection.

Categoría: Contact Tool Setters Etiquetas: CNC Tool Length Measurement, Compact CNC Tool Setter, Z-Axis Contact Tool Setter

DTS200S is a compact, wired Z-axis contact tool setter for automated tool length measurement, offset setting and programmed tool checks on CNC machining centers. Its Ø20 mm tungsten carbide contact pad registers contact in the +Z direction and sends a trigger signal through a normally open (NO) electrical output.

A distinguishing feature is the bellows-style cover surrounding the moving contact assembly. The cylindrical housing and round mounting base offer an alternative installation arrangement to rectangular tool setters, provided the machine has suitable clearance and mounting provisions.

The DTS200S has specified repeatability below 1 μm (2σ) at a probing speed of 50 mm/min. Its published movement characteristics include a 0.7 mm pre-stroke, 8.5 mm axial stroke and 5.5 mm trigger protection distance. It also features IP68 sealing and a 5 m oil-resistant, six-core cable.

With suitable CNC inputs and measurement macros, the DTS200S supports tool length setting, offset verification and basic tool breakage checks. Qidu provides guidance on installation, calibration, wiring and controller integration.

Model	DTS200S
Product Type	Z-Axis Contact CNC Tool Setter
Contact Pad Diameter	Ø20 mm
Trigger Direction	+Z
Repeatability	<1 μm (2σ)
Repeatability Test Speed	50 mm/min
Pre-Stroke	0.7 mm
Z-Axis Stroke	8.5 mm
Trigger Protection Distance	5.5 mm
Trigger Force	2.2 N (vertical installation)
Output Configuration	A: Normally Open (NO)
Signal Transmission	Hard-Wired Cable
Mechanical Trigger Life	>10 million cycles
Contact Pad Material	Tungsten Carbide
Cable Length	5 m
Cable Type	Oil-Resistant, 6-Core
Cable Outer Diameter	Ø4.8 mm
Electrical Contact Rating	DC 24 V, ≤20 mA, resistive load
Recommended Contact Current	10 mA
Protective Conduit Length	2 m
Minimum Protective Conduit Bend Radius	7 mm (as specified)
LED Status	Normal: OFF; Activated: ON
Protection Rating	IP68

Specification	DTS200C	DTS200	DTS100
Contact Pad Diameter	Ø20 mm	Ø20 mm	Ø10 mm
Trigger Direction	+Z	+Z	+Z
Repeatability	<1 μm (2σ)	<1 μm (2σ)	<1 μm (2σ)
Test Speed	50 mm/min	50 mm/min	50 mm/min
Pre-Stroke	0.7 mm	0.7 mm	0.5 mm
Z-Axis Stroke	8.5 mm	11 mm	6 mm
Trigger Protection Distance	5.5 mm	5.5 mm	3.5 mm
Trigger Force	2.2 N	2.2 N	1.8 N
Electrical Output	NO	NO	NC
Overall Height Shown	83.9 mm	110.0 mm	43.0 mm
Housing / Mounting	Cylindrical / Round Base	Rectangular	Rectangular
Protection Rating	IP68	IP68	IP68
